TDZ5-WS bench top low speed laboratory centrifuge

  • Product name:TDZ5-WS bench top low speed laboratory centrifuge
    Product model:TDZ5-WS
    Maximum speed:5000r/min
    Maximum capacity:4*100ml
    Product number:
    Product brand:Herexi
    Product weight:25kg
  • product details

Product Name: TDZ5-WS bench top low speed laboratory centrifuge

Max RCF :4514xg

Max Speed(r/min):5000

Max Capacity:  4*100ml

PIN:TDZ5-WS
Brand: Herexi
Product unit: set
Weight:25Kg
This series is widely applied in experiments and scientific researches of various fields such as biochemistry,genetic engineering,forestry science,food safety,blood stations,clinical test,etc.
Product Details




Features:
Micro-controller and high-torque brushless motor provide stable operation and low noise.

TFT-LCD true color touch screen and physical button dual operation mode, can change parameters at any time during operation, the operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).

It has various early warning functions such as over-speed, over temperature, unbalance, under pressure and overpressure,special damping and shock absorption, which makes the motor run safely and reliably, and achieve excellent centrifugal effect.

The bio-safety airtight angle rotor uses a silicone rubber integral seal (EU RoHS 2015/863) to avoid fully guarantee for the safety of the staff and laboratory environment.

304 stainless steel centrifugal chamber and whole-steel casing, one-piece stamped steel front face and three-layer steel protective cover to ensure the safety of workers and laboratories.

With mechatronic motor door lock.

Can store 20 sets of user-defined programs Can be customized according to demand

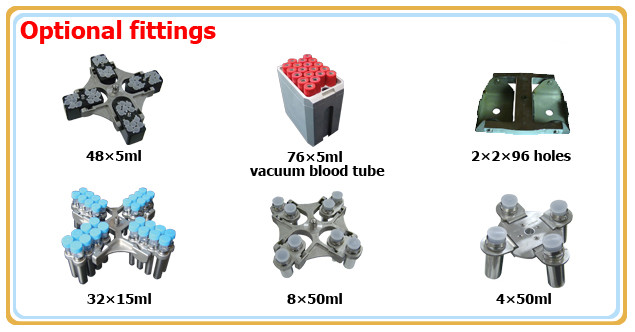

Aviation forged aluminum rotor (angle rotor only) and a variety of adapters are available, can centrifuge various MTP micro-plates, PCR plates, cell plates.

With CFDA & CFDA production qualification, ISO 9001, ISO 13485 and CE certification.


Model

TDZ5-WS

Max capacity

4×100 ml

Max speed(r/min)

5000

Max RCF(×g)

4514

Speed precision

±50r/min

Time range

0-99h59min

Operation programe

20

Control and drive system

Frequency motor,micro control,direct drive

Total power

350 W

Power

AC220V 50Hz

Noise

≤60 dB

Dimension(L×W×H)

500×450×280 mm

Weight

25 Kg
